NavH 2.0 - IMU / AHRS

Documentation :

DS_NAVEOL_NavH_2.0_RevA.pdf

This product is the world smallest, lightest and ultra low-cost Inertial Measurement Unit (IMU) with proprietary Attitude and Heading Reference System algorithms (AHRS).

With a size of only 12mm * 18mm, it is fitted with 3 accelerometers and 3 gyrometers (LSM6DSR), 3 magnetometers (LIS3MDL), a powerful 16 Mips Digital Signal Processor, 1 control LED, and a very standard 0.1” 6-pin header for a direct connection to FTDI cables.

The board only needs 16mA @ 3.3V-10V power supply to output data at up to 100Hz.

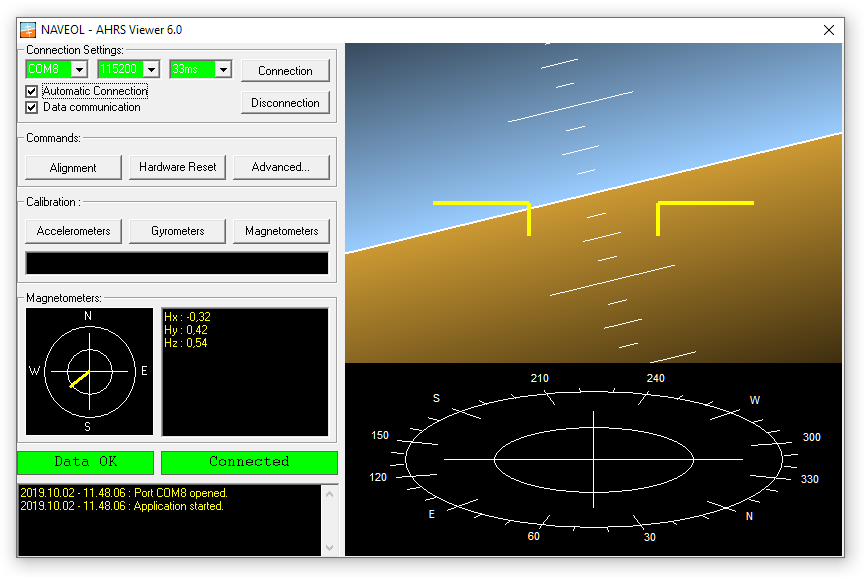

Download here free demo software. By connecting your NavH 2.0 module to a serial port (FTDI cable for example), you can easily evaluate the performances:
